H-Type Electrochemical Cell with Purge Tube
- Material: High-quality glass or inert plastic
- Components: Cell body, electrodes, purge tubes, membrane separator, cap/sealing mechanism
- Packaging: Customizable quantities available upon request

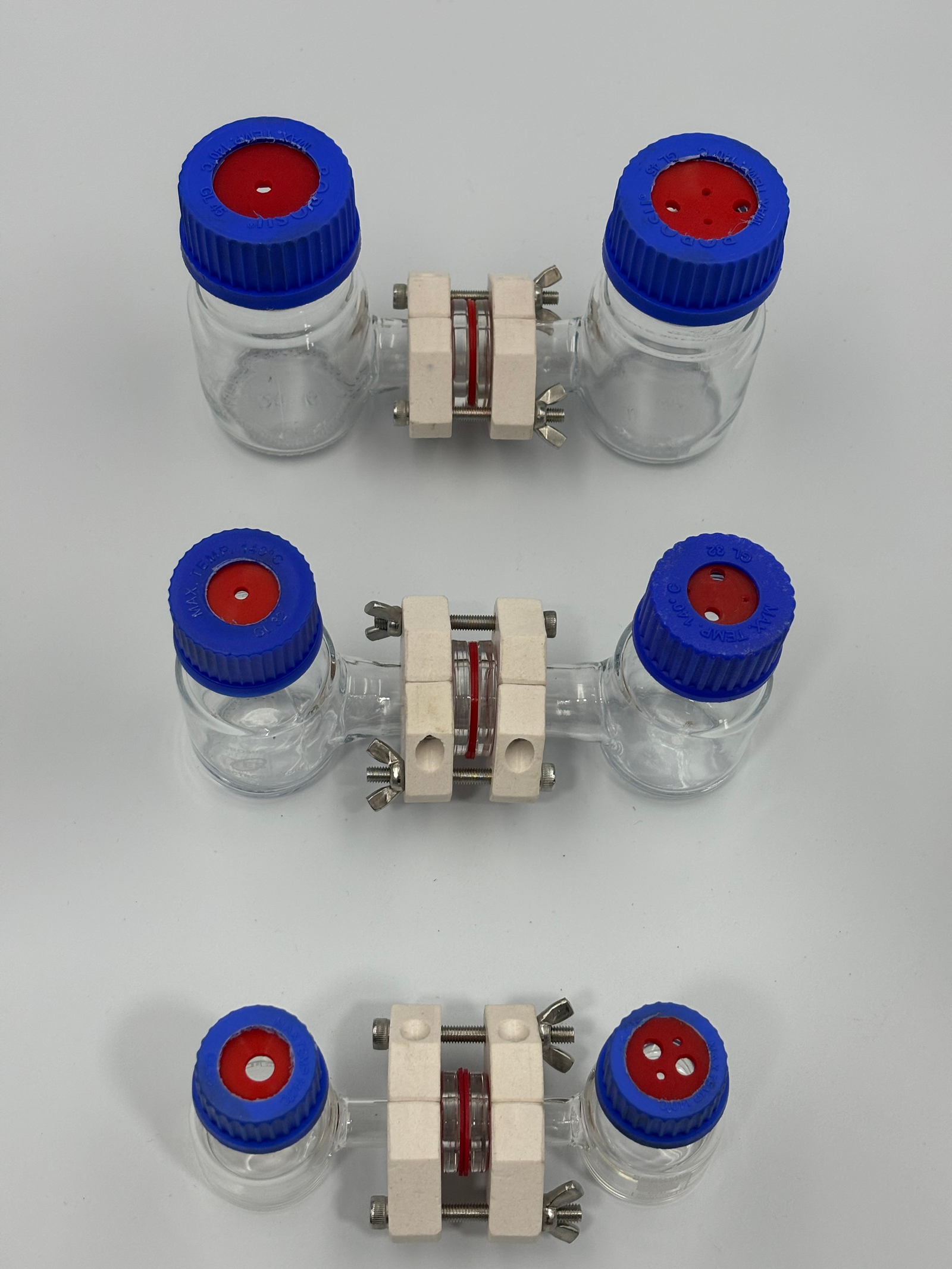

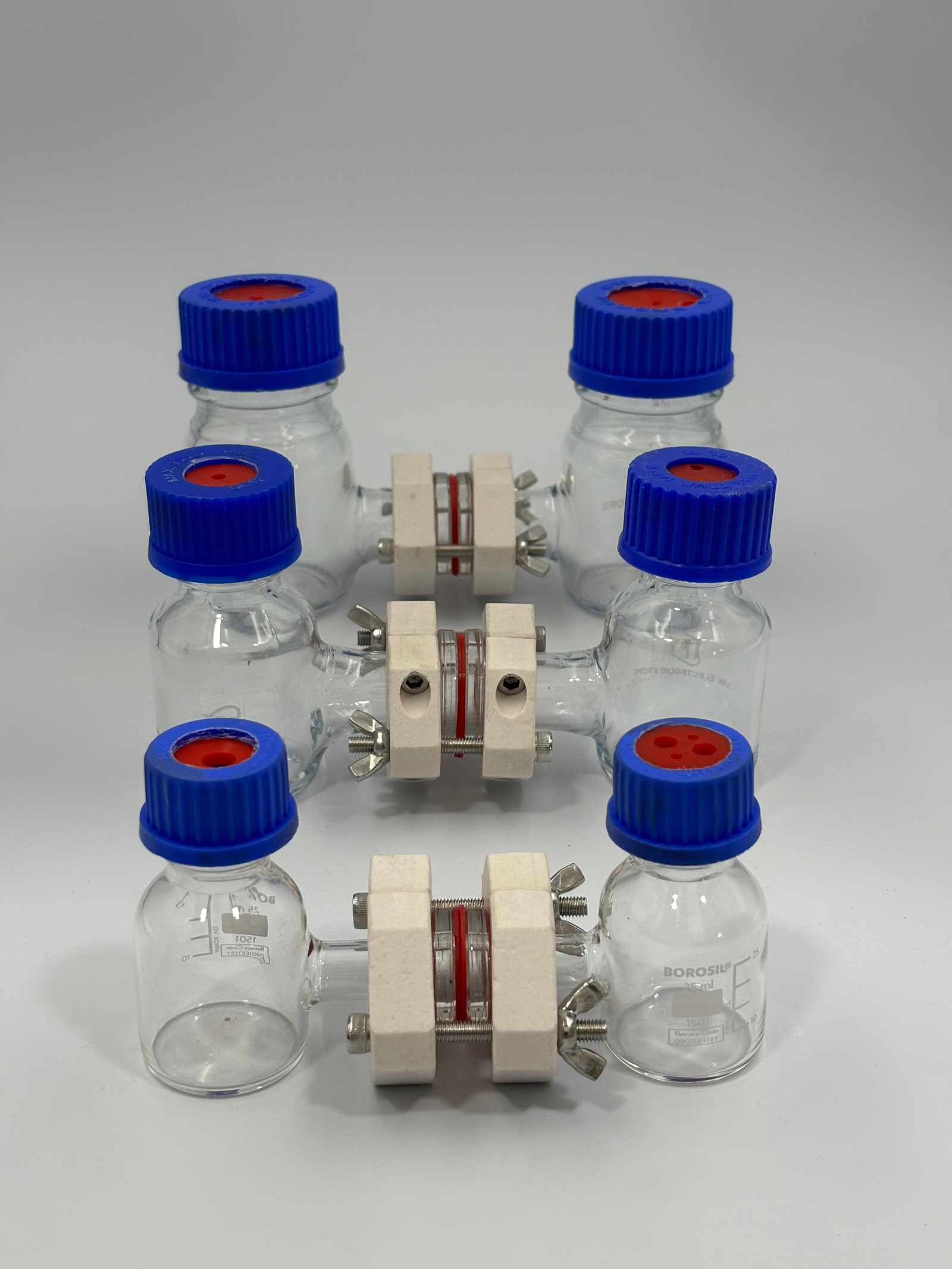

- Volume Options per Compartment: 20 mL, 50 mL, 100 mL
Introduction
The H-Type electrochemical cell is designed for precise and efficient hydrogen evolution reaction (HER) and oxygen evolution reaction (OER) studies. This cell features two compartments, each equipped with a purge tube for gas introduction and control. Made from high-quality materials, the H-Type cell ensures durability, chemical resistance, and optimal performance. It is ideal for research and development in electrochemistry, materials science, and energy storage applications.
Specification
Material :
- Cell Body: High-quality glass
- Electrodes: Platinum, gold, graphite, or other materials as required
- Purge Tubes: Inert material compatible with cell body
- Membrane Separator: Nafion or other ion-exchange membranes
Components :
- Cell Body: H-Type design with two compartments connected by a membrane separator
- Electrodes: Configurable based on experimental needs (working, counter, reference)
- Purge Tubes: Integrated tubes for gas purging in each compartment
- Membrane Separator: Ensures separation of products and allows ion exchange
- Cap/Sealing Mechanism: Secure sealing to prevent leakage and contamination
Operating Conditions :
- Temperature Range: -20°C to 80°C (varies with material)
- Pressure: Suitable for atmospheric pressure to slight positive pressure
Applications
- Hydrogen Evolution Reaction (HER): Ideal for studying the mechanisms and kinetics of HER.
- Oxygen Evolution Reaction (OER): Suitable for investigating the processes and efficiency of OER.
- Electrochemical Research: Used for various electrochemical studies, including corrosion, electrodeposition, and more.
- Materials Science: Suitable for testing new materials and catalysts for HER and OER applications.
- Energy Storage: Applied in the development and testing of energy storage devices, such as fuel cells and electrolyser.
Order Information
| S.No | Product Name | Qty | Part No |
|---|---|---|---|
| 1 | H Type cell 20 mL each compartment with purge tube | 1 set | TES-ECELL-HC-20 |
| 2 | H Type cell 50 mL each compartment with purge tube | 1 set | TES-ECELL-HC-50 |
| 3 | H Type cell 100 mL each compartment with purge tube | 1 set | TES-ECELL-HC-100 |
Customization
Custom quantity and configurations are available upon request. Please contact our sales team for more information.
